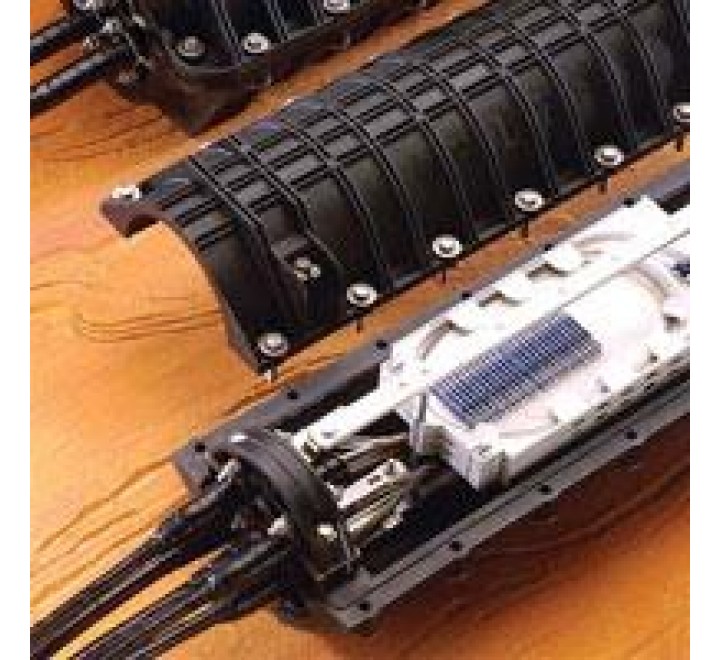

Coyote w/buffer tube storage, 6-port endplate, up to 8 trays/288 fibers

The first to set the standard in the COYOTE family of products, the COYOTE Closure was developed with our customers’ needs first. Used in aerial, underground, buried and building applications, the COYOTE Closure is a whole new breed of fiber optic closure. Craft-friendly, affordable, reliable and durable, the COYOTE Closure ensures long-term reliability and quality of voice, video and data signals. Plus, it’s tested in accordance with Bellcore Testing Requirement GR-771-CORE. Its compact size disguises its storage capacity.

Made of injection molded high density thermoplastic, the shells are built to last in any environment. Closing hardware on the shell is captive, making closing and re-entry simple. The neoprene gasket, proven effective in our other closures, provides an airtight, waterproof seal. No expensive re-entry kits are required. For ease of ordering and ease of use, the End Plates are one size. There is a blank End Plate for butt splice applications, and Three-Section End Plates can easily be configured in the field for butt and in-line installations. The Three-Section End Plate comes with six entry ports for cables up to 7/8″ in diameter. The factory applied, field-proven LOCK-TAPE™ Sealant applied to the inside surface of the Three-Section End Plate ports and around the cables ensures a tightly sealed, permanent, easy assembling without the use of sealing washers or grommets.

Splice Trays are sold separately. Holds up to:

• (11) Low Profile Splice Trays, 36 Splices per Tray or
• (8) Standard Splice Trays, 36 Splices or
• (4) Ribbon Splice Trays, 144 Splices per Tray

Closure Kit Includes:

• (1) 3 Section, 6-Port End Plate
• (1) Blank End Plate
• Organizer and LOCK-TAPE Sealant
