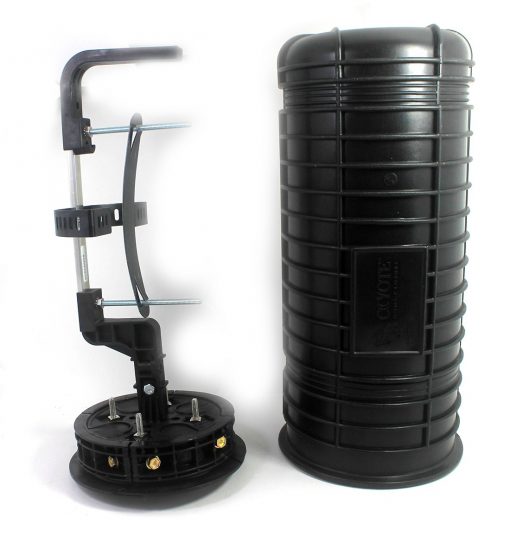

Dome for loose buffer tube, holds up to 4 trays/216 single fibers (use Runt/Pup trays)

The COYOTE ® Dome closures have the versatility and features that make it a perfect choice for fiber-to-the premise networks. Both the 6.5″ and 9.5″ dome closure designs use PLP’s patented segmented end plate system which allows independent access to each cable port without disruption to surrounding cables.

Flexible grommet sealing technology supports a wide range and quantity of flat or round cable profiles. Segmented end plate design provides independent access to every cable. Available in flame retardant material. Tested in accordance to GR-771-CORE by an independent outside lab. Collar system allows for quick re-entry. Flexible grommet sealing technology supports a wide range and quantity of flat or round cable profiles. Ground Stud Quantity: 4 in the 6.5″ End Plate. In-Line options also available. Applications: Direct Buried, Below Grade, Pole/Wall Mount or Aerial.

All 6.5″ Dome Kit includes: (1) End Plate with Organizer Assembly, (1) Dome, (1) Gasket, (1) Small Parts Bag, (2) 8003701 Grommets and Cable Restraint Hardware.
